Everything You Need to Know About Quad-Flat-No-Lead (QFN) Packaging
Quad-flat-no-lead (QFN) packaging has, over the years, become the most popular form of packaging technology in the semiconductor industry owing to their unique advantages. These packages basically provide a mechanism to connect integrated circuits to printed circuit boards. There are mainly two types of QFN packages available in the market today.
Over the years, the semiconductor industry has grown leaps and bounds. Heavy investments by leading players in research and development of semiconductors, increasing governmental support to the industry, and massive growth in demand for semiconductor devices from various industries, especially, consumer electronics and automobile sector, have led to a wide range of innovative and advanced technologies being launched almost every year. Quad-Flat-No-lead (QFN) packaging is one such example of an innovative technology that has changed the face of the semiconductor industry.
What is Quad-Flat-No-Lead (QFN) Packaging and How Does It Work?

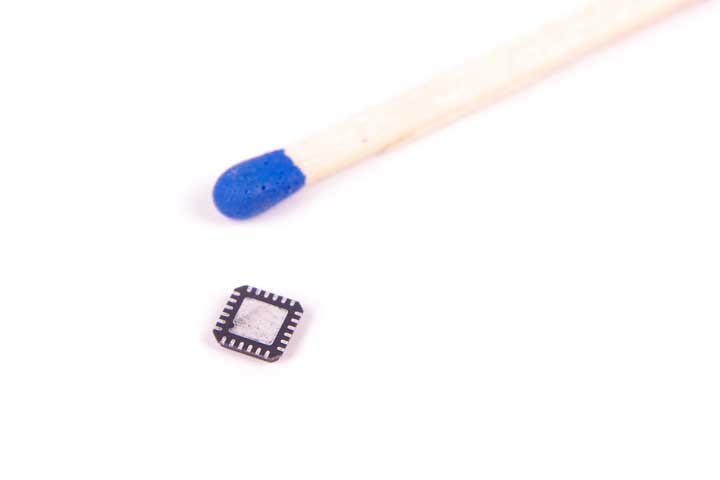

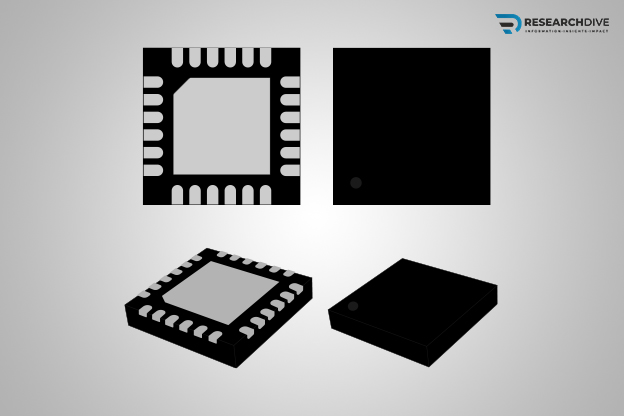

Quad-Flat-No-lead packaging is used to physically and electrically connect printed circuit boards and integrated circuits. There are many ways to connect integrated circuit packages to printed circuit boards, the quad-flat-no-lead packaging being the most popular and economical one. The QFN package as the name suggests is a leadless package whose silicon die connects firmly to the printed circuit board and offers moderate heat dissipation.
The QFN package comes with a frame made from copper alloy and tin coating which is connected to the silicon die with the help of copper or gold wiring. In some cases, instead of interconnecting the die and the frame with wiring, a flip-chip technology is used, especially when the electrical performance needs to be higher. The quad-flat-no-lead packaging also has an exposed terminal pad at the bottom which is soldered to the printed circuit board. Apart from enabling ground connections, this exposed terminal pad, in fact, helps in creating an efficient heat path to the printed circuit board. Without forced air cooling, these pads have the capacity to bear around 2W-3W of power.
Types of Quad-Flat-No-Lead (QFN) Packaging
There are mainly two types of QFN packages available in the quad-flat-no-lead packaging market today which are used as per the needs of the circuitry and the electronic good that is being manufactured. Some of these types are explained in brief:
- Punched QFN Package
In this type of QFN package, the core package is molded in a single cavity format and is separated with the help of a punch tool. The design of punched quad-flat-no-lead packaging is such that they work perfectly in case of low volume products.
- Sawn QFN Package
Sawn quad-flat-no-lead packaging is developed by cutting a large set of packages with the help of mold array processing. The packages, thus developed, are then designed to form individual sawn QFN packages. Sawn QFN packages, as opposed to punched QFN, are mainly used in high volume production.
Advantages of Quad-Flat-No-Lead (QFN) Packaging
There are various semiconductor packaging technologies available in the market; however, QFN packages are the most popular and highly used packaging technology owing to their benefits. The different advantages of QFN packages are given below:
- One of the biggest advantages of quad-flat-no-lead packaging is the low cost of the packages which brings down the overall cost of production and thus paves the way for the manufacturer to supply affordable electronic products in the market.
- QFN packages are extremely light-weight and very easy to handle. Both these benefits are especially necessary in today’s world where there has been an increasing emphasis on the manufacturing of light-weight electronic goods.
- QFN packages have small form factor which reduces the complexity of the circuitry, thereby aiding the developers and designers to work on them.
- QFN packages have excellent electrical and thermal performance and are perfect for applications which require good heat dissipation.
The Bottom Line
The mode of operation of quad-flat-no-lead packaging has made it a sort of panacea for almost all the problems that plagued the semiconductor industry in recent times. The ease with which these packages can be scaled have made them the first-choice for leading consumer electronics and automotive manufacturers. Further research and development in this field is expected to push the demand for quad-flat-no-lead packaging higher.
